The STMicroelectronics' evaluation board implements in various configurations,their LNBH26LS intergrated circuit. LNBH05 - Power supply evaluation board for LNB based on the LNBH26S LNBH06 LNBH26LS - Dual LNBS supply and control IC with step-up and I²C interface STEVAL-CBL011V1 - Evaiuation Board for LNBH26 chipset (Obselete)

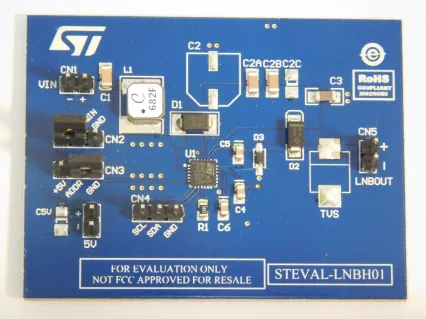

Description This board implements a DC-DC converter based on the LNBH26LS device. It is used to power LNBs inside dish antennas to receive satellite TV signals.

The LNBH26LS evaluation board includes an I²C bus interface and the internal 22 kHz tone generator which can be controlled by the DSQIN pin (TTL compatible), allowing immediate DiSEqC™ data encoding.

Requires an input voltage from 8 V to 16 V.
