SG-Labs Transverter for 23cm amateur radio band

• Emmision Modes: SSB, AM, CW , FM
• 2W output power
• Low noise figure GaAs HEMT input stage
• High performance UP / DOWN converters
• High stability TCXO
• Internal Tx/Rx switch
• Split-frequency operation option (selectable, require additional soldering)
• Internal Directional Coupler
• PTT can be switched by connecting PTT to ground, by RF power (selectable) or by DC voltage
• RX/TX switching:
  • push PTT input to ground
  • RF VOX
  • apply DC voltage to coax cable
• Output SWR indicator - bi-color LED
• Optimal input power indicator - bi-color LED
• Integrated Sequencer
• Repeater operation option : -28 / -6 MHz LO shift TX (selectable)
• Working via repeater: default -28 MHz LO offset (selectable)

SG Lab's 23cm Transverter

Changing to Split Mode

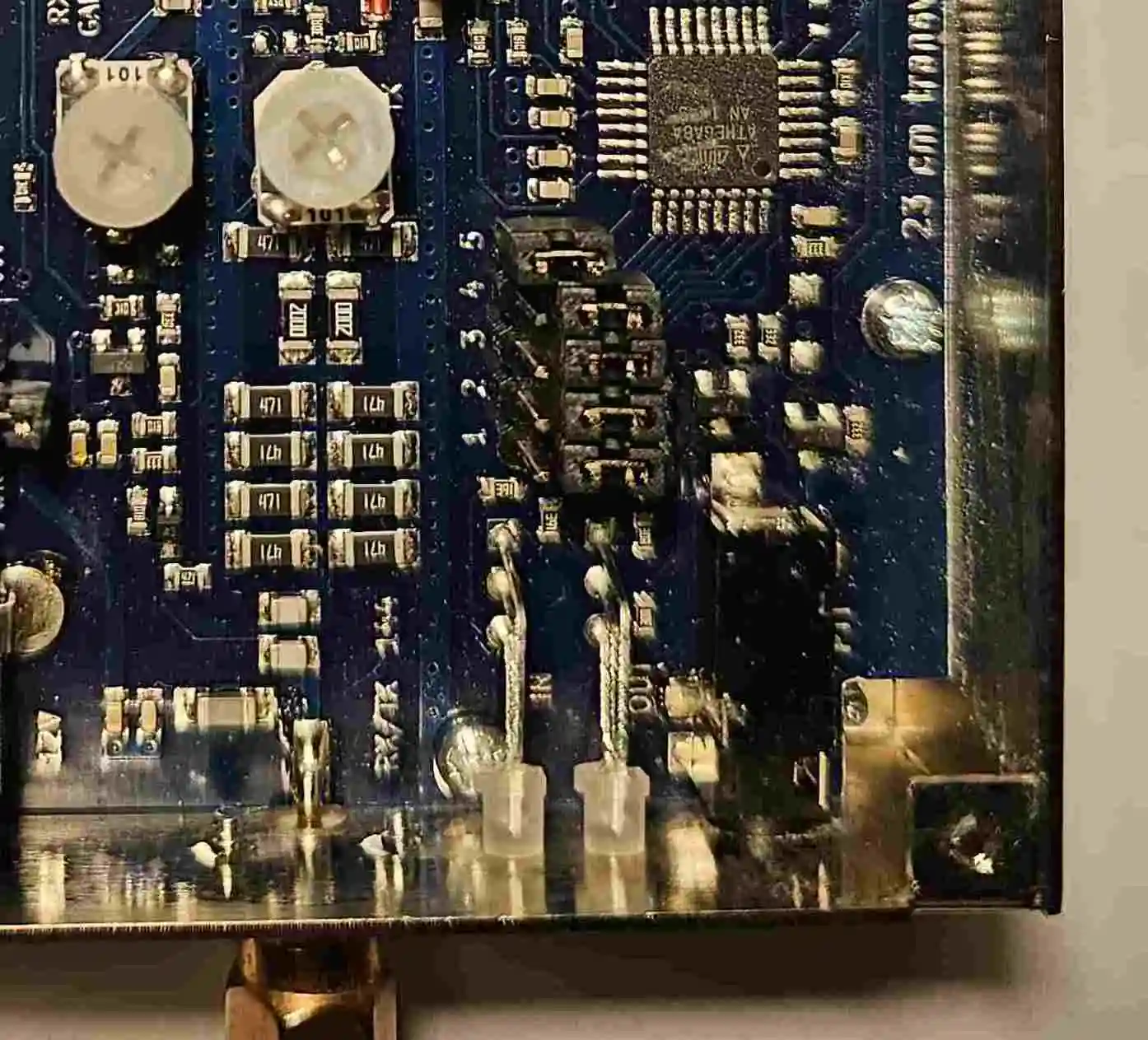

Jumper Settings

Buying the SG Labs Transverter

Videos

23cm Band Plan

Receiving JT4 from Beacons

If you are using transverters, set appropriate frequency offsets on the Settings | Frequencies tab. Offset is defined as (transceiver dial reading) minus (on-the-air frequency). For example, when using a 144 MHz radio at 10368 MHz, Offset (MHz) = (144 - 10368) = -10224.000. If the band is already in the table, you can edit the offset by double clicking on the offset field itself. Otherwise a new band can be added by right clicking in the table and selecting Insert.

Jumper Settings

References

Testing
