SR-201 Web Server Switch

Contents:

12 pin Jumper
Relay Connectors
Factory Default Settings
Chipsets
STC 8H1K28 Micro Controller

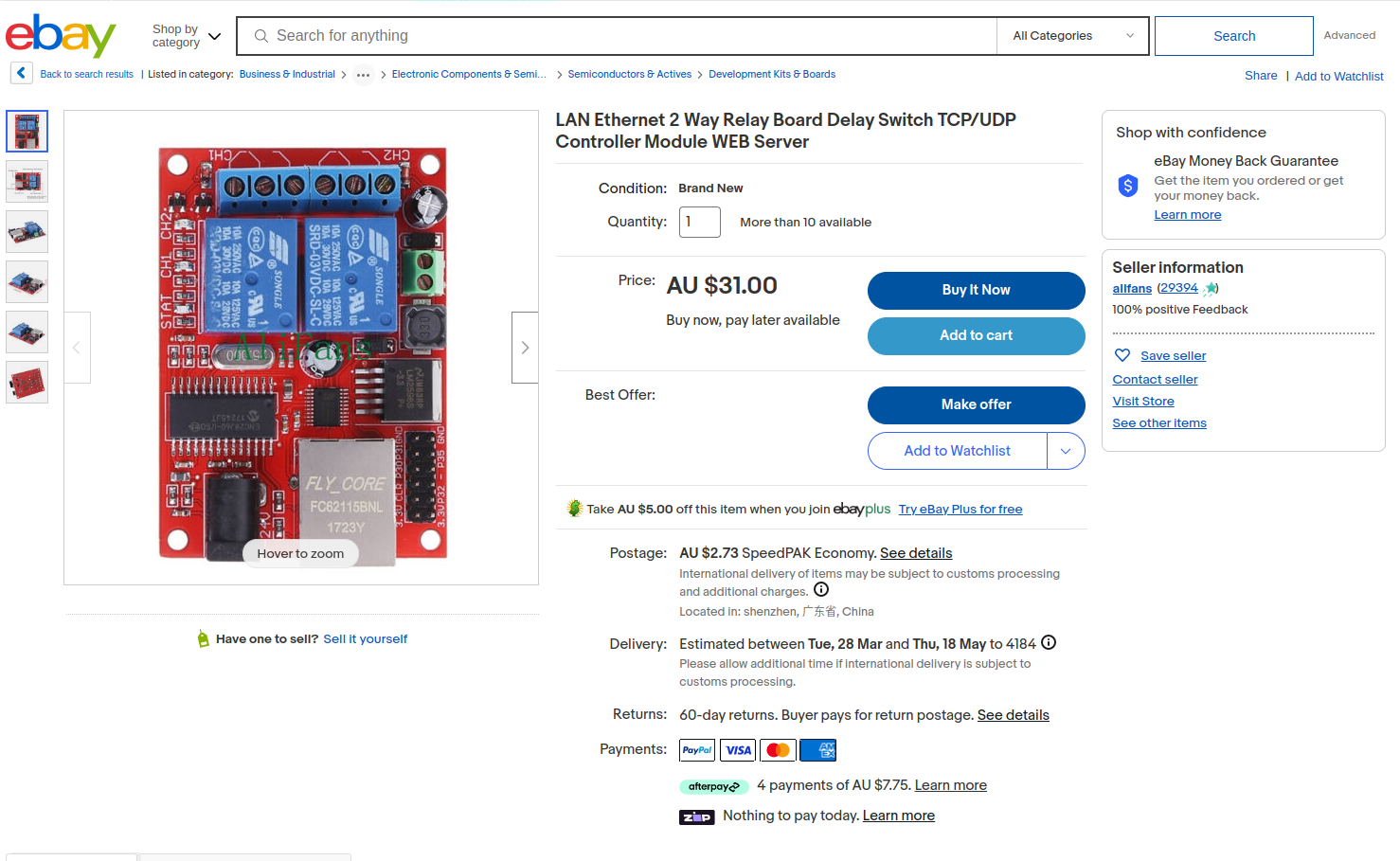

Ebay Order
github code repository
sr-201-relay.py
Configuration Parameters
Hard Reset to Factory Settings
Using nc command
Example - SR-201 Python code
Python Code
Video it's open, then in n seconds (1 <= n <= 65535)
References

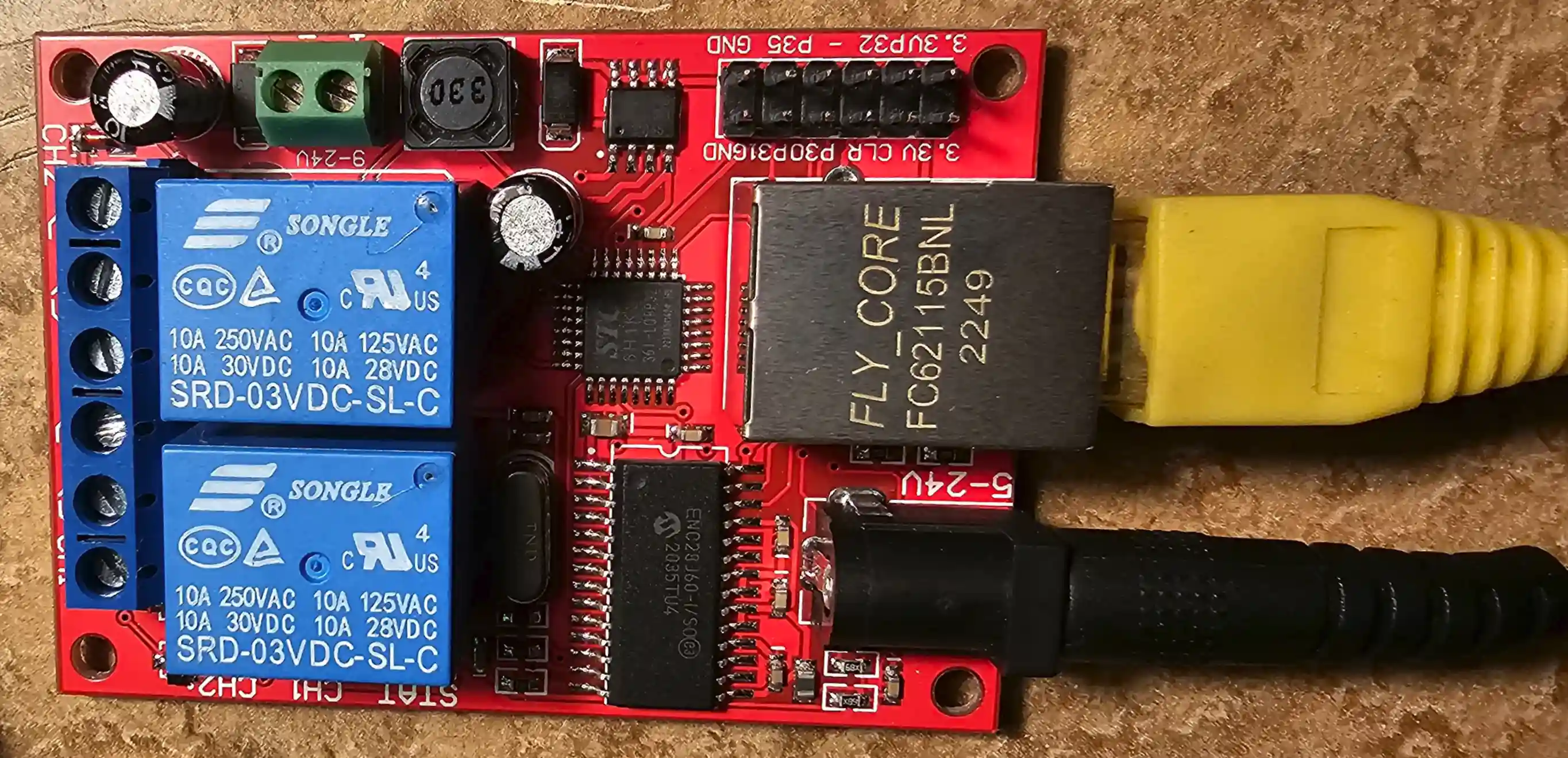

LAN Ethernet 2 Way TCP/UDP Controller Module Web Server

Description:

Micro-channel remote control 2-way remote cloud Ethernet network switch delay relay TCP/UDP
relay module controller can be expanded to 8
Control via Ethernet and internet pull 2 relay, the release
And can be extended by a pin external relay module to eight outputs
Module supports TCP, UDP, cloud remote control three kinds of operation
Easy to understand instructions, instruction can specify 1--65535 seconds delay
Module is equipped with VB, Delphi PC program and source code to help you easily computerized remote control
TCP and cloud remotely can check the status of all relays
Also after each command processing is complete, the module will return to the latest state of all relays
UDP mode no status query or other returns
Code is extremely simple, easy to be embedded into a variety of applications
Full support for secondary development, open TCP, UDP control protocol, cloud secondary development
    package provides remote SOAP Web Service API interface and RESTful Web Service API interface


Module Features:

STC microcontroller for industrial master chip
Onboard 2-way high-quality relay, relay with absorption diode circuit
With 1-channel power indicator, each relay has status indicator lights up and relay
The relay module can be extended up to 8 outputs, Note: The relay module should be active high
You can configure the module through the network parameters, such as the module IP address,
    default gateway, etc
Holding relay status before power down (configurable)
Through internet control, remote cloud by local password protection, safe and reliable
Supports 5V or 9-24V input voltage 1.6mm thick PCB by the military grade FR-4 sheet material,
    PCB size 6.8x4.8cm, set aside the mounting holes
 PCB dimensions: approx. 6.8x4.8x1.5cm/2.68x1.89x0.59"

12 pin Jumper

Interface Description:

pin 1 - +3V [power supply
pin 2 - +3v power supply
pin 3 - CLR
pin 4 - P32, Channel 4
pin 5 - CLR
pin 6 - P33, Channel 5
pin 7 - P30, Channel 3
pin 8 - P34, Channel 6
pin 9 - P31, Channel 7
pin 10 - P35, Channel 8
pin 11 - GND: power ground
pin 12 - GND: power ground

P30 – P35: CH3 – CH8 control line, active high
CLR: Short circuit CLR and power on the module to restore factory settings

[Top][Home]

Relay Connectors

Blue terminal: Connect to user load, you can use 220V AC equipment, or DC equipment less than 30V, the current of the equipment cannot exceed the standard load of the relay. Each relay has a normally open contact, a normally closed contact and a common contact. When the relay is closed, the common contact and the normally open contact conduct; when the relay is released, the common contact and the normally closed contact conduct Pass.

[Top][Home]

Factory Default Settings

Factory setting of the module is:

IP address: 192.168.1.100 Network parameters can be configured over the network
Default gateway: 192.168.1.1
Subnet mask: 255.255.255.0
TCP Port: 6722 - The service port of the module cannot be configured
UDP Port: 6723

Module parameters can be re-configured through the network.
Factory Settings can be restored by shorting the CLR jumper and powering up the module.
[Top][Home]

Chipsets

ENC28J60:

https://www.alldatasheet.com/datasheet-pdf/pdf/102687/MICROCHIP/ENC28J60.html

The ENC28J60 is a stand-alone Ethernet controller with an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.

Ethernet Controller Features

IEEE 802.3 compatible Ethernet controller
Integrated MAC and 10BASE-T PHY
Supports Full and Half-Duplex modes
Programmable automatic retransmit on collision
Programmable padding and CRC generation
Programmable automatic rejection of erroneous packets
SPI Interface with clock speeds up to 20 MHz

[Top][Home]

STC 8H1K28 Micro Controller

Ultra-high speed 8051 Core with single clock per machine cycle, which is called 1T and the speed
is about 12 times faster than traditional 8051
https://stcmicro.com/stc/stc8h1k28.html

[Top][Home]

Configuration Parameters

Change the IP address The #2 command expects the new static IP address as an argument. #29876,192.168.0.201; >OK; You should also send a #7 and close the connection for the device to restart is Ethernet connection with the new setting.

Source:https://github.com/cryxli/sr201/wiki/Config-commands

[Top][Home]

Hard Reset to Factory Settings

Note that this board has a 3.3 volt supply not 5 volt. Short pins 3 and 5 and power cycle the board. Remove the jumper (short) after resetting the board.

[Top][Home]

Using nc command

This an example using the "nc" command to communicate directly with the sr-201 module.

[Top][Home]

Example - SR-201 Python code

This code is broken - DO NOT USE
https://sr-201-relay.sourceforge.io/

[Top][Home]

Python Code

#!/usr/bin/python3
#
# SYNOPSIS
#   sr-201-relay.py relay-hostname [command...]
#
#
# DESCRIPTION
#
#   Configures and controls a SR-201 Ethernet relay.  If no commands are given
#   'config' is assumed.  If you don't supply relay-hostname a short help
#   message will be issued listing the available commands.
#
# BUGS
#
#   Although this program can be used to issue control commands to the relay
#   I recommend doing it directly instead.  It will be be faster, more
#   reliable, and the task is so simple the code will be shorter.  The
#   primary purpose of this code is to document how to do it, with a working
#   example.
#
#
# THE DEVICE: Factory Defaults
#
#    Default IP Address:        192.168.1.100
#    Port 6722:                 TCP control
#    Port 6723:                 UDP control
#    Port 5111:                 TCP Configuration
#
#    The device can be reset to these defaults by shorting the CLR pins
#    on the header next to the RJ45 connector.  CLR is adjacent to the +5V
#    and P30 pins.
#
# THE DEVICE: Commands that can be sent over the TCP and UDP control ports
#
#    Commands are ASCII strings that must be sent in one packet
#    (even for TCP):
#
#        0R     No operation (but return status).
#
#        1R*    Close relay if it's open, wait approx 1/2 a second, open
#               relay.
#
#        1R     Close relay if it's open.
#
#        1R:0   Close relay if it's open.
#
#        1R:n   Close relay if it's open, then in n seconds (1 <= n <= 65535)
#               open it.
#
#        2R     Open relay if it's closed.
#
#    Where:
#
#        R      is the relay number, '1' .. '8'.  The main board has relay's
#               '1' and '2', the extension board (if present) has the rest.
#               If R is 'X' all relays are effected.
#
#    If the command is sent over TCP (not UDP, TCP only), the relay will
#    reply with a string of 8 0's and 1's, representing the "before" command
#    was executed" state of relay's 1..8 in that order.  A '0' is sent if the
#    relay is open, '1' if closed.
#
#
# THE DEVICE: TCP Configuration
#
#    Commands are ASCII strings that must be sent in one TCP packet.  'i'
#    is a random number in the range '1000' .. '9999':
#
#    #1i;       Query State.  Response is a comma separated list of fields
#               terminated by a semicolon (';').  Example response:
#
#                 >192.168.1.100,255.255.255.0,192.168.1.1,,0,435,F44900F6087457000000,192.168.1.1,connect.tutuuu.com,0;
#
#               Fields in order of appearance are:
#
#               ID  Value in example     Description
#               --  -------------------- ---------------------------------
#                2  192.168.1.100        Devices IP Address.
#                3  255.255.255.0        Devices subnet mask.
#                4  192.168.1.1          Gateway.
#                5                       Unknown.
#                6  0                    '1'=Save relay state across poweroff.
#                7  435                  Software version is 1.0.435 / reset.
#               na  F44900F6087457000000 Device serial number.
#                8  192.168.1.1          DNS Server to look up cloud service.
#                9  connect.tutuuu.com   Cloud service.
#                A  0                    Cloud service enabled if = '1'.
#
#
#    #Di,F;    Set the state whose ID is 'D' to value 'F'.  For example:
#
#                #61234,1;      Persist relay state across power cycle.
#                #71234;        Reset the device so changes take effect.
#
#              ID 'B' sets the cloud service password.
#
#
# THE DEVICE: Cloud operation
#
#   If cloud operation is enabled (by setting ID "A" to "1"), the device sends
#   a HTTP "POST" request every second or so to server stipulated in setting
#   ID "9".  The request is:
#
#      POST /SyncServiceImpl.svc/ReportStatus HTTP/1.1
#      User-Agent: SR-201W/M96Y
#      Content-Type: application/json
#      Host: 192.168.1.1
#      Content-Length: 30
#
#      "F0123456789ABCXXXXXX00000000"
#
#   The post body contains the following fields:
#
#       F0123456789ABCXXXXXX00000000
#       \------------/\----/\------/
#             |         |      |
#             |         |      +---- State of relays 1..8, 0=open, 1=closed.
#             |         +----------- Password.
#             +--------------------- Serial number.
#
#   The response must have the Content-Length header set, and the body must
#   be a singe application/json string starting with "A" optionally followed
#   by a single relay control command, eg:
#
#      HTTP/1.1 200 OK
#      Content-Type: application/json
#      Content-Length: 7
#
#      "A11:2"
#
#
# Home page: https://sr-201-relay.sourceforge.net/
#
# Author: Russell Stuart, russell-debian@stuart.id.au
#
# License
# -------
#
# Copyright (c) 2017 Russell Stuart.
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU Affero General Public License as published
# by the Free Software Foundation, either version 3 of the License, or (at
# your option) any later version.
#
# The copyright holders grant you an additional permission under Section 7
# of the GNU Affero General Public License, version 3, exempting you from
# the requirement in Section 6 of the GNU General Public License, version 3,
# to accompany Corresponding Source with Installation Information for the
# Program or any work based on the Program. You are still required to
# comply with all other Section 6 requirements to provide Corresponding
# Source.
#
# This program is distributed in the hope that it will be useful, but
# WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
# Affero General Public License for more details.
#
# You should have received a copy of the GNU Affero General Public License
# along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
import warnings; warnings.simplefilter('default')
import os
import re
import select
import socket
import sys
import time

class Sr201(object):
    _IPV4_RE = '[.]'.join(
        ('(?:[0-9]{1,2}|[01][0-9]{2}|2[0-4][0-9]|25[0-5])',) * 4)
    _hostname = None
    _port = None
    _soc = None
    trace = False

CONFIG_NAMES = [
        'ip',
        'netmask',
        'gateway',
        '(unknown)',
        'power_persist',
        'version',
        'serial',
        'dns',
        'cloud_server',
        'cloud_enabled',
        'cloud_password']

PORT_CONFIG = 5111
    PORT_CONTROL = 6722

def __init__(self, hostname):
        self._hostname = hostname
        self.open()

def flush(self):
        s = select.select([self._soc.fileno()], [], [], 0.001)
        while s[0]:
            data = self._soc.recv(4096)
            if self.trace:
                sys.stdout.write('~ ' + data.encode('latin1') + '\n')
            s = select.select([self._soc.fileno()], [], [], 0.0)

def open(self, port=None):
        port = port or self.PORT_CONTROL
        if port == self._port:
            self.flush()
            return
        self.close()
        self._soc = socket.create_connection((self._hostname, port))
        self._port = port

def close(self):
        if self._soc:
            self.flush()
            self._soc.close()
            self._port = None
            self._soc = None

def recv(self):
        response = self._soc.recv(4096).decode('latin1')
        if self.trace:
            sys.stdout.write('< ' + response + '\n')
        return response

def send(self, data):
        if self.trace:
            sys.stdout.write('> %s\n' % (data,))
        return self._soc.send(data.encode('latin1'))

def send_config(self, command, op, value):
        self.open(self.PORT_CONFIG)
        param = value is not None and ',' + value or ''
        self.send('#' + op + '9999' + param + ';')
        response = self.recv()
        if (
            not response or response[0] != '>' or response[-1] != ';' or
            op != '1' and response != '>OK;'
        ):
            me = os.path.basename(sys.argv[0])
            msg = "%s: invalid response to %r: %r\n" % (me, command, response)
            sys.stderr.write(msg)
            sys.exit(1)
        return response

def do_close(self, command):
        match = 'close:([1-8Xx])([~]|:[1-9][0-9]{0,4}|6[0-4][0-9]{3})?$'
        match = re.match(match, command)
        if not match:
            usage('Invalid %r' % (command,))
        data = '1' + match.group(1).upper()
        if match.group(2) == '~':
            data += '*'
        elif match.group(2):
            data += match.group(2)
        self.open()
        self.send(data)

def do_cloud_enabled(self, command):
        match = re.match('(?i)cloud_enabled=(0|1|n|no|y|yes)$', command)
        if not match:
            usage('Invalid %s' % (command,))
        cloud_enabled = match.group(1) in ('1', 'y', 'yes') and '1' or '0'
        self.send_config(command, 'A', cloud_enabled)

def do_cloud_password(self, command):
        match = re.match('(?i)cloud_password=([0-9]{6})$', command)
        if not match:
            usage('%s must be exactly 6 digits' % (command,))
        self.send_config(command, 'B', match.group(1))

def do_cloud_server(self, command):
        match = (
            'cloud_server=((?:[-a-z0-9]+[.])+[-a-z0-9]{2,}|' +
            self._IPV4_RE + ')$')
        match = re.match(match, command)
        if not match:
            usage('Invalid %s' % (command,))
        self.send_config(command, '9', match.group(1))

def do_config(self, command):
        response = self.send_config(command, '1', None)
        # >192.168.1.100,255.255.255.0,192.168.1.1,,0,435,F44900F6087457000000,192.168.1.1,connect.tutuuu.com,0;
        values = response[1:-1].split(',')
        if len(values) != len(self.CONFIG_NAMES) - 1:
            raise Exception('Expected 10 values in response: %r' % (response,))
        for i in range(len(values)):
            sys.stdout.write('%s=%s\n' % (self.CONFIG_NAMES[i], values[i]))
        sys.stdout.write('%s=(not-sent)\n' % (self.CONFIG_NAMES[-1],))

def do_dns(self, command):
        match = re.match('dns=(' + self._IPV4_RE + ')$', command)
        if not match:
            usage('Invalid %s' % (command,))
        self.send_config(command, '8', match.group(1))

def do_gateway(self, command):
        match = re.match('gateway=(' + self._IPV4_RE + ')$', command)
        if not match:
            usage('Invalid %s' % (command,))
        self.send_config(command, '4', match.group(1))

def do_ip(self, command):
        match = re.match('ip=(' + self._IPV4_RE + ')$', command)
        if not match:
            usage('Invalid %s' % (command,))
        self.send_config(command, '2', match.group(1))

def do_netmask(self, command):
        match = re.match('netmask=(' + self._IPV4_RE + ')$', command)
        if not match:
            usage('Invalid %s' % (command,))
        ip = match.group(1).split('.')
        ip = sum(256 ** (3 - i) * int(ip[i], 10) for i in range(len(ip)))
        if all(ip != 2 ** 32 - 2 ** i for i in range(32)):
            usage('%s is not a CIDR' % (command,))
        self.send_config(command, '3', match.group(1))

def do_open(self, command):
        match = re.match('open:([1-8Xx])$', command)
        if not match:
            usage('Invalid open %r' % (command,))
        data = '2' + match.group(1).upper()
        self.open()
        self.send(data)

def do_pause(self, command):
        match = re.match('pause:([0-9]+(?:[.][0-9]*)?|[.][0-9]+)$', command)
        if not match:
            usage('Invalid pause %r' % (command,))
        pause = float(match.group(1))
        time.sleep(pause)
        if pause > 10:
            self.close()

def do_power_persist(self, command):
        match = re.match('(?i)power_persist=(0|1|n|no|y|yes)$', command)
        if not match:
            usage('Invalid %s' % (command,))
        power_persist = match.group(1) in ('1', 'y', 'yes') and '1' or '0'
        self.send_config(command, '6', power_persist)

def do_reset(self, command):
        if command != 'reset':
            usage('Invalid reset %r' % (command,))
        self.send_config(command, '7', None)
        self.close()

def do_status(self, command):
        if command != 'status':
            usage('Invalid status %r' % (command,))
        self.open()
        self.send('00')
        states = self.recv()
        sys.stdout.write('relay status: ' + ' '.join(
            '%d-%s' % (r + 1, states[r] == '0' and 'open' or 'closed')
            for r in range(len(states))) + '\n')

#
# ya flubbed it, dearie.
#
def usage(msg=None):
    def w(s, d=None):
        def split(w):
            i = (i for i in range(1, len(w) + 1) if len(' '.join(w[:i])) > 64)
            i = next(i, 64)
            r = w[:i]
            w[:i] = []
            return ' '.join(r)
        if not d:
            sys.stderr.write(s + '\n')
        else:
            w = d.split()
            sys.stderr.write(s + ' ' * max(16 - len(s), 1) + split(w) + '\n')
            while w:
                sys.stderr.write(' ' * 16 + split(w) + '\n')
    me = os.path.basename(sys.argv[0])
    if msg:
        w('%s: %s' % (me, msg))
    else:
        w('usage: %s [--trace] relay-hostnamme command...' % (me,))
        w('options:')
        w('  --trace', 'Print a trace of all I/O to the relay')
        w('commands:')
        w('  close:R', 'Close relay R.')
        w('  close:R:T', 'Close relay R, then after T seconds open it.')
        w('  close:R~', 'Close relay R, then in about 1/2 a second open it.')
        w('  config', 'Print the devices configuration settings to stdout.')
        w('  CONFIG=VALUE',
            'Set the configuration item "CONFIG" to "VALUE".')
        w('  open:R', 'Open relay R.')
        w('  pause:n', 'Pause for n seconds.')
        w('  reset', 'Reset device, applying changes to the configuration.')
        w('  status', 'Print the states of all relays.')
        w('R:')
        w('  The relay, a digit 1..8, or X for all relays.')
    sys.exit(1)

#
# Entry point.
#
def main(argv=sys.argv):
    i = 1
    trace = False
    if len(argv) > i and argv[i] == '--trace':
        trace = True
        i += 1
    if len(argv) == i:
        usage()
    if argv[i].startswith("-"):
        usage("unknown option %r" % (argv[i],))
    sr_201 = Sr201(argv[i])
    i += 1
    sr_201.trace = trace
    commands = argv[i:] or ('config',)
    for command in commands:
        cmd = re.match('[_a-z]+', command)
        if not cmd or not hasattr(sr_201, 'do_' + cmd.group(0)):
            usage('Unrecognised command %r.' % (command,))
        getattr(sr_201, 'do_' + cmd.group(0))(command)
    sr_201.close()

if __name__ == '__main__':
    main()

[Top][Home]

Video

it's open, then in n seconds (1 <= n <= 65535) # open it. Get started whit SR-201 Network relay, Installation and usage tutorial by Fohab Electro:

https://www.youtube.com/watch?v=0Gnxaf7Dlt0

SR-201Network relay by Udda Ting:

[Top][Home]

References

https://www.youtube.com/watch?v=UkHdXKTLjog

Arduino YUN rev.2 and SR-201 Relay Card:
it's open, then in n seconds (1 <= n <= 65535) # open it. https://www.open-electronics.org/arduino-yun-rev-2-and-sr-201-relay-card/

[Top][Home]

Glenn Lyons VK4PK
glenn@LyonsComputer.com.au
Ver:gnl20230321 - pre published v0.9

SR-201 Web Server Switch

12 pin Jumper

Relay Connectors

Factory Default Settings

Chipsets

STC 8H1K28 Micro Controller

Ebay Order

github code repository

sr-201-relay.py

Configuration Parameters

Hard Reset to Factory Settings

Using nc command

Example - SR-201 Python code

Python Code

Video

References
